H50 / H51
Deoiling filter
- 5 m³/h
- 750 W
The H SERIES filters are derived from the L SERIES. Instead of traditional filtration media, these are equipped with an OILTECH™ polypropylene microfiber bag to absorb oils present in the liquid. A 500 g load collects 6 liters of oil! In addition, the oil separators are equipped with a skimmer - floating or fixed - to suck up the oil on the surface.
Features and benefits
Excellent chemical resistance
Available in polypropylene or PVDF, this filter is resistant to both acids and bases.
Durable and resistant design
Our extremely strong plastic welding method eliminates the need for gaskets, eliminating the risk of leakage.
Pump Protection
The filter holder protects the pump from splashes of potentially corrosive fluids, thus extending its life.
Improved ergonomics
The bayonet lock lid opens and closes with one hand.
Superficial suction

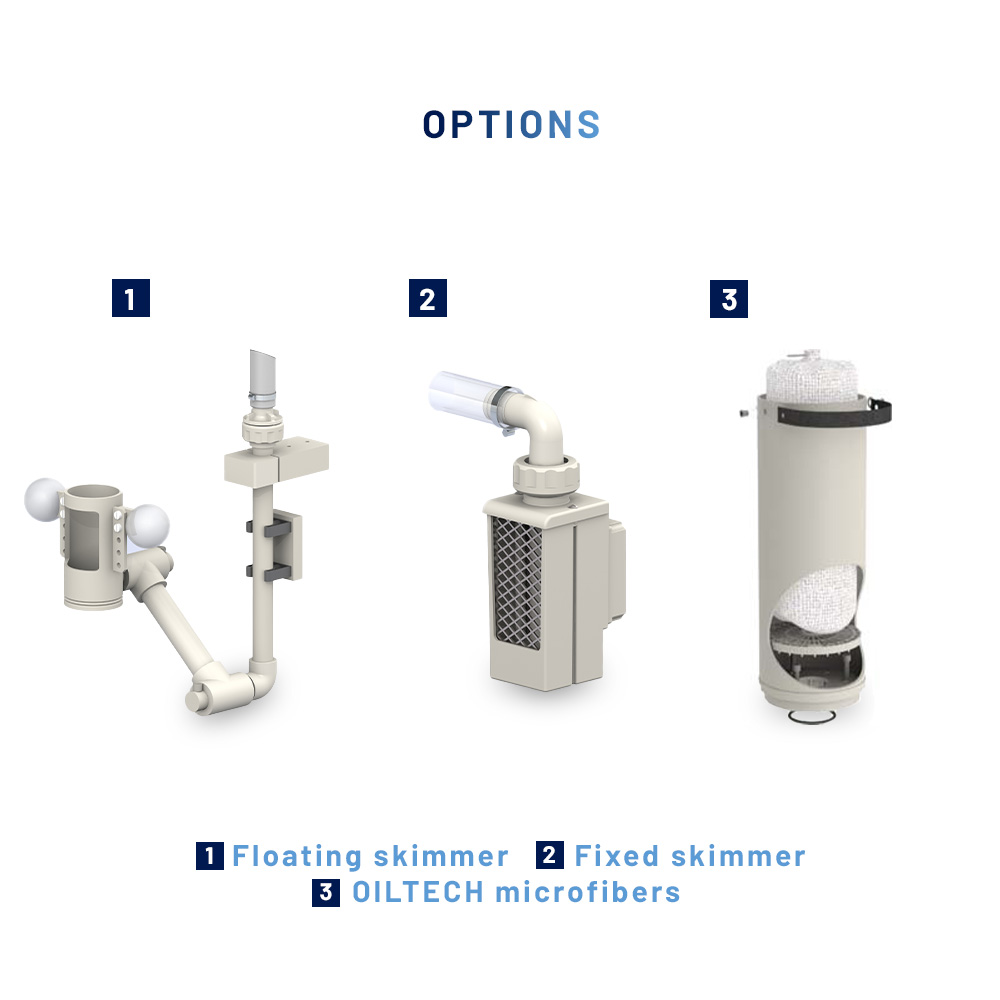

The oil separators are equipped with skimmers to suck the oil from the surface of the baths to be treated. The skimmer is available in fixed or floating version for a treatment whatever the level of the tank.
Caractéristiques
Performances
- Flow rate (m³/h)
- 5
- Media height
- 20"
- Double filtration tank
- Not available
- Flow rate (m³/h)
- 5
- Filtration media
- Filtration threshold (µm)
- 50
Design
- End
- Nut, Nozzle, Flange, Threaded
- Materials
- Polypropylene
- Max temperature (°C)
- 80
Motor
- Drive
- Magnetic
- Related pump models
- M50, M100
Dimensions
- Width (mm)
- 520
- Depth (mm)
- 279
- Height (mm)
- 1296
