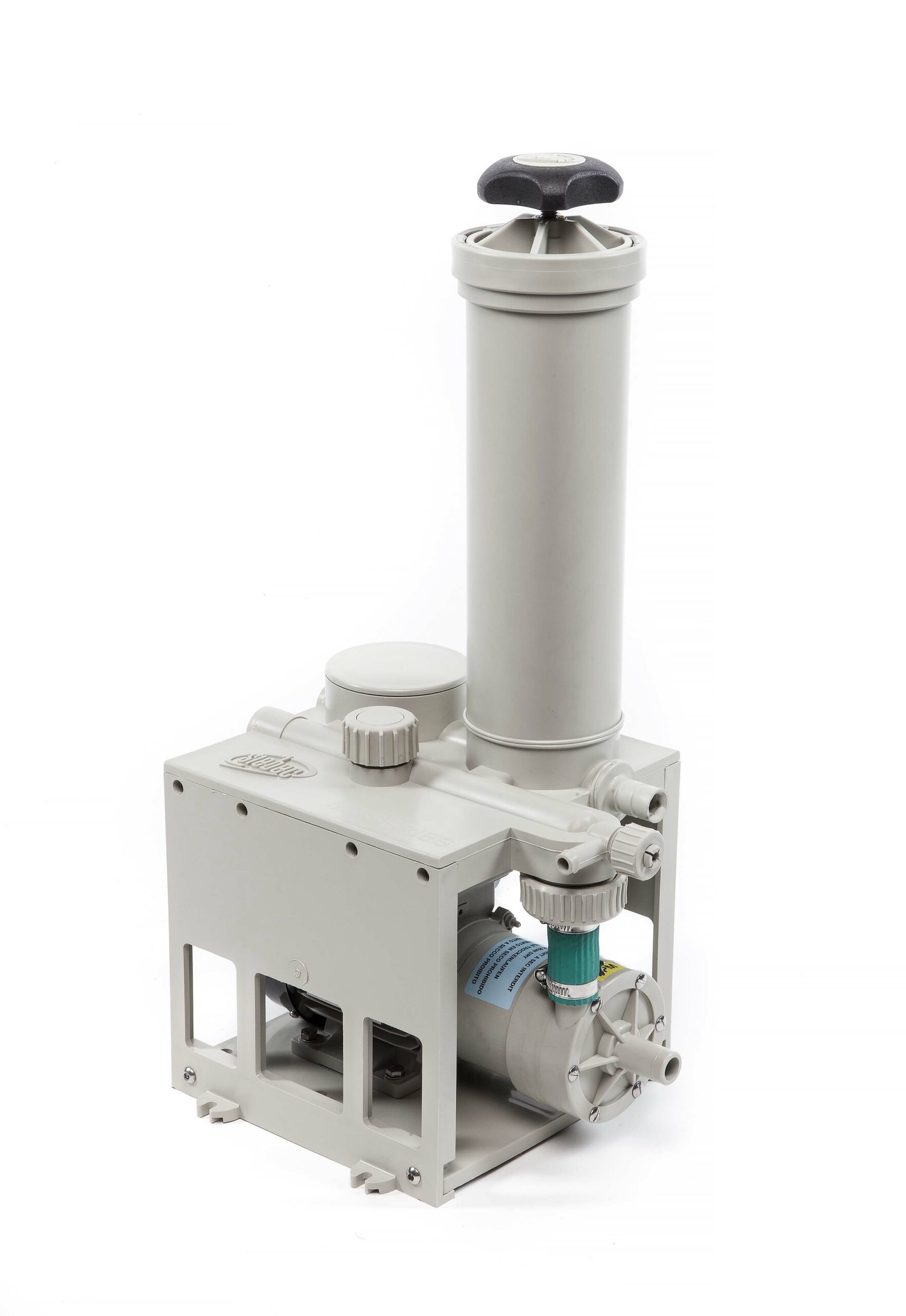

MC15
Low flow filter
- 4 m³/h
- 180 W
This compact filter offers a flow rate of 1.5 to 4 m³/h on 1 or 2 filtration tanks (10" or 20"). It is available in 2 materials: polypropylene (PP) or PVDF for high temperatures up to 110°C.
Features & benefits
Excellent chemical resistance
Available in polypropylene or PVDF, this filter is resistant to both acids and bases.
Durable and resistant design
Our extremely strong plastic welding method eliminates the need for gaskets, eliminating the risk of leakage.
Pump Protection
The filter holder protects the pump from splashes of potentially corrosive fluids, thus extending its life.
Improved ergonomics
The bayonet lock lid opens and closes with one hand.
Exclusive modularity
Series or parallel
Possibility of configuring the filtration tanks in series or parallel according to your needs.
Multi-tank version
Double the filtration capacity by opting for the multi-tank version, available in 10 and 20 inches.
Specifications
Performances
- Flow rate (m³/h)
- 4
- Media height
- 10", 20"
- Media height
- 10", 20"
- Double filtration tank
- Available
Design
- End
- Nut, Nozzle, Flange
- Materials
- Polypropylene, PVDF
- Max temperature (°C)
- 110
Motor
- Power (W)
- 180
- Drive
- Magnetic
Dimensions
- Width (mm)
- 378
- Depth (mm)
- Height (mm)
- 819
