P50 / P50E
Very high flow filter (optional coating tank)
- 25 m³/h
- 1500 W
A very high flow rate filter up to 25 m³/h made of filled polypropylene with very high chemical and mechanical resistance, the P50 offers a maximum filtration area of 40 m²! The P50E version has a 100-liter coating tank.
Features & benefits
Excellent chemical resistance
Made of glass-filled polypropylene, this filter is resistant to both acids and bases.
Durable and resistant design
Our extremely strong plastic welding method eliminates the need for gaskets, eliminating the risk of leakage.
Pump Protection
The filter holder protects the pump from splashes of potentially corrosive fluids, thus extending its life.
High filtration compatibility.

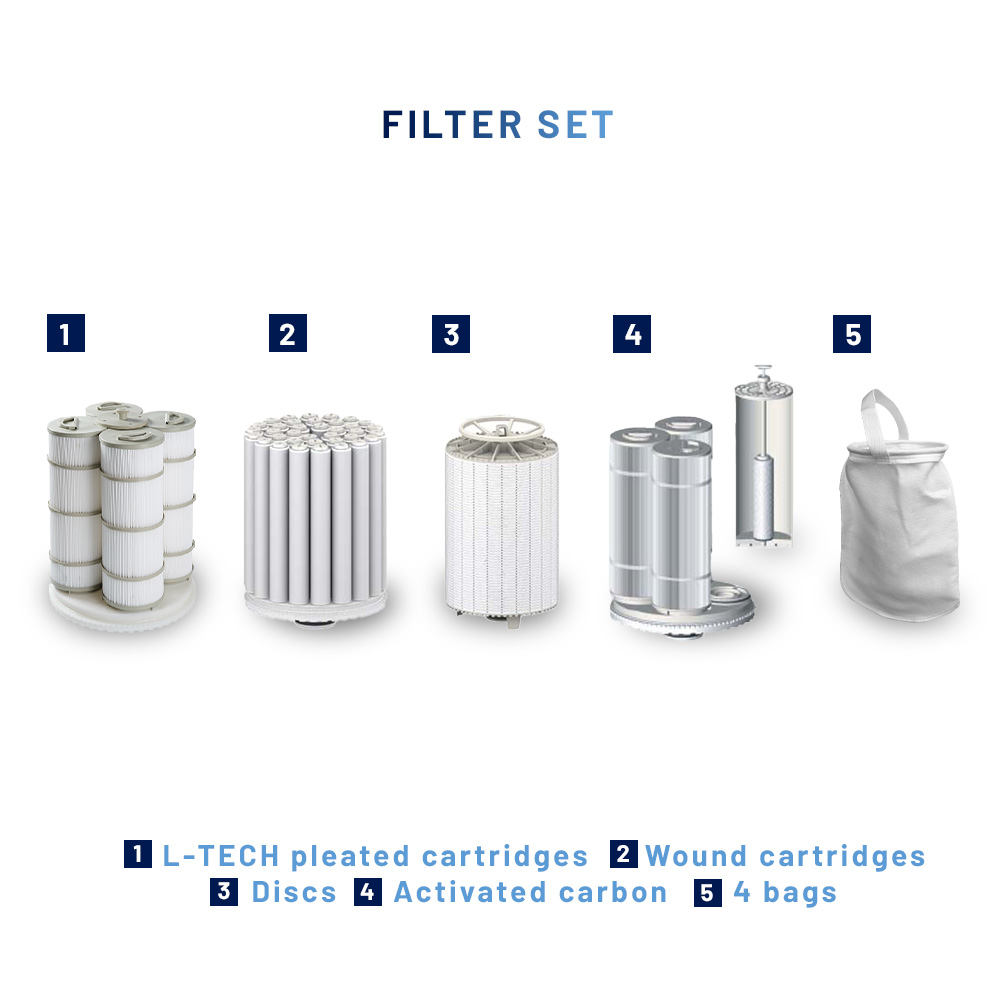

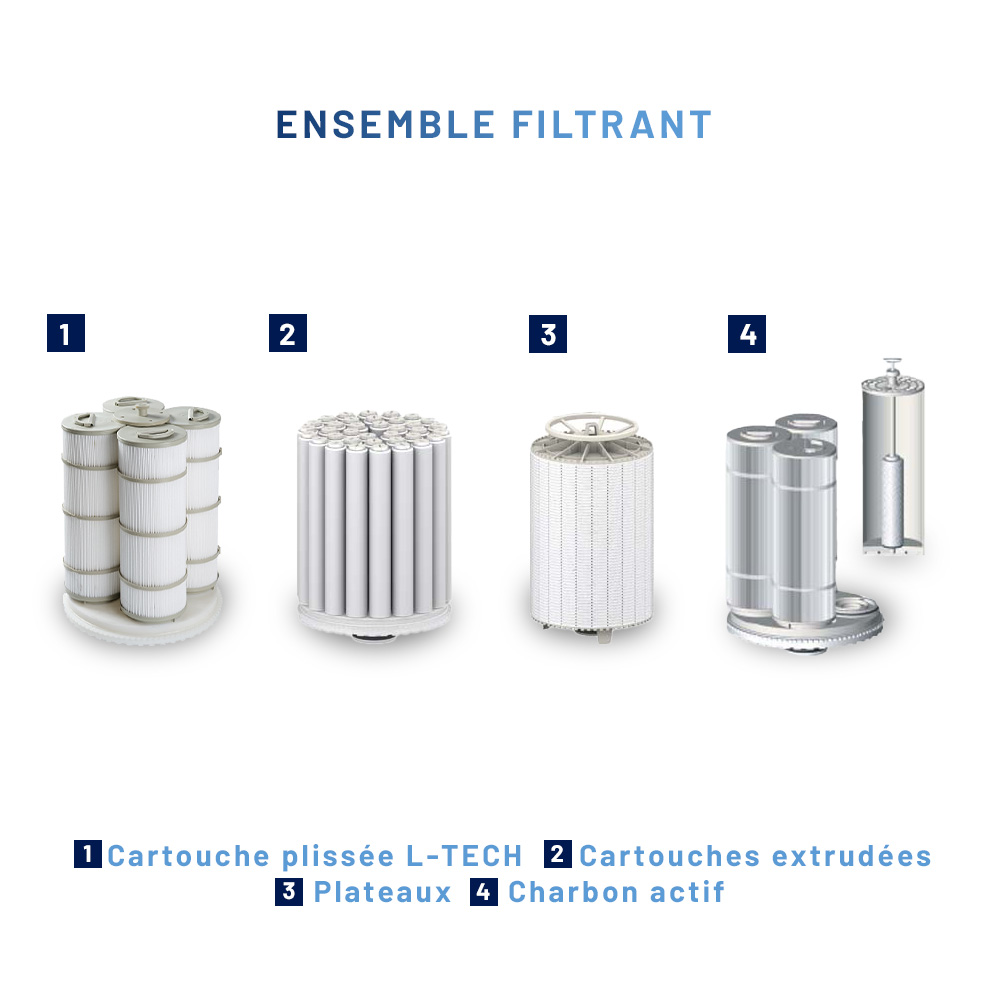

Filtration on pleated cartridge (L-TECH™ type), heat sealed cartridges (Qualitherm™ type), filter trays or activated carbon.
Specifications
Performances
- Flow rate (m³/h)
- 25
- Media height
- 20"
- Double filtration tank
- Not available
- Coating tank
- Optional
- Filtration media
- L-TECH™ (pleated cartridge), QUALITHERM™ (extruded cartridge), Filter discs, CARBONCANTECH™ (activated carbon)
- Filtration threshold (µm)
- 0,2 > 100
Design
- End
- Nut, Nozzle, Flange, Threaded
- Materials
- Polypropylene
- Max temperature (°C)
- 70
Motor
- Drive
- Magnetic, Mechanical seal
- Related pump models
- M140, M200, M250, A19
Dimensions
- Width (mm)
- 893
- Depth (mm)
- 498
- Height (mm)
- 1571
