ATMOS C-MAX
Centralized oil mist purification solution
- 1000 - 6000 m³/h

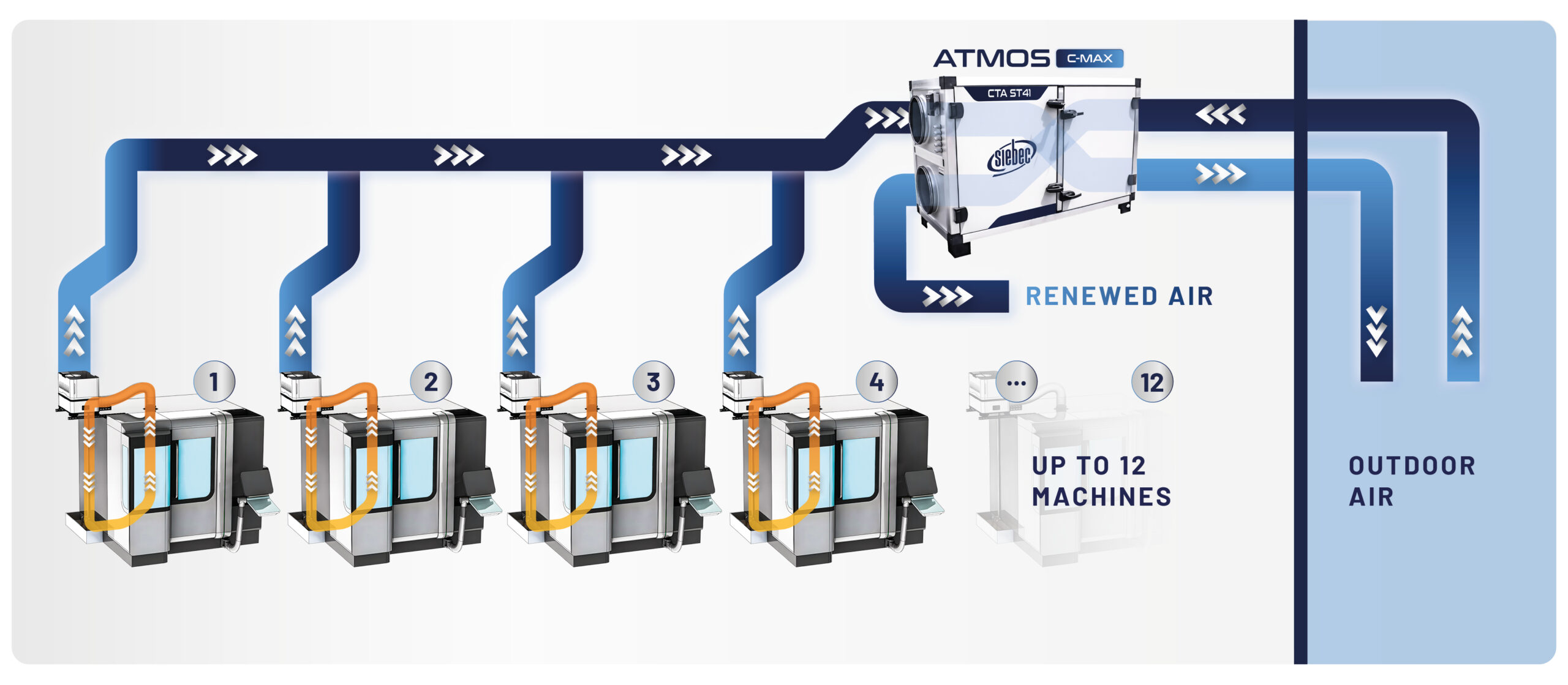

The ATMOS C-MAX™ solution represents an innovative centralized network of oil mist scrubbers designed to route air extracted from machining equipment directly outside, eliminating any risk of contamination of the working environment. This EUROVENT®-certified counter-current exchanger guarantees optimum renewal of stale air with fresh air, with energy recovery in excess of 80%.
Multicyclonic separation
Our system uses multi-cyclone mechanical separation technology with no moving parts or consumables, thanks to our ATMOS patent.
This revolutionary approach guarantees efficient separation of air and oil without the need for frequent maintenance or replacement of expensive parts.
Optimizing energy consumption
Thanks to its innovative design, this system eliminates the need to transport oil through the entire network.
Lubricant is collected locally, reducing transport-related power consumption and ensuring optimum energy efficiency throughout the process.
Cost-effective management of consumables
With very few consumables required, our system offers an economical and sustainable solution for oil mist management.
You reduce costs associated with maintenance and consumables, while maintaining peak performance on a consistent basis.

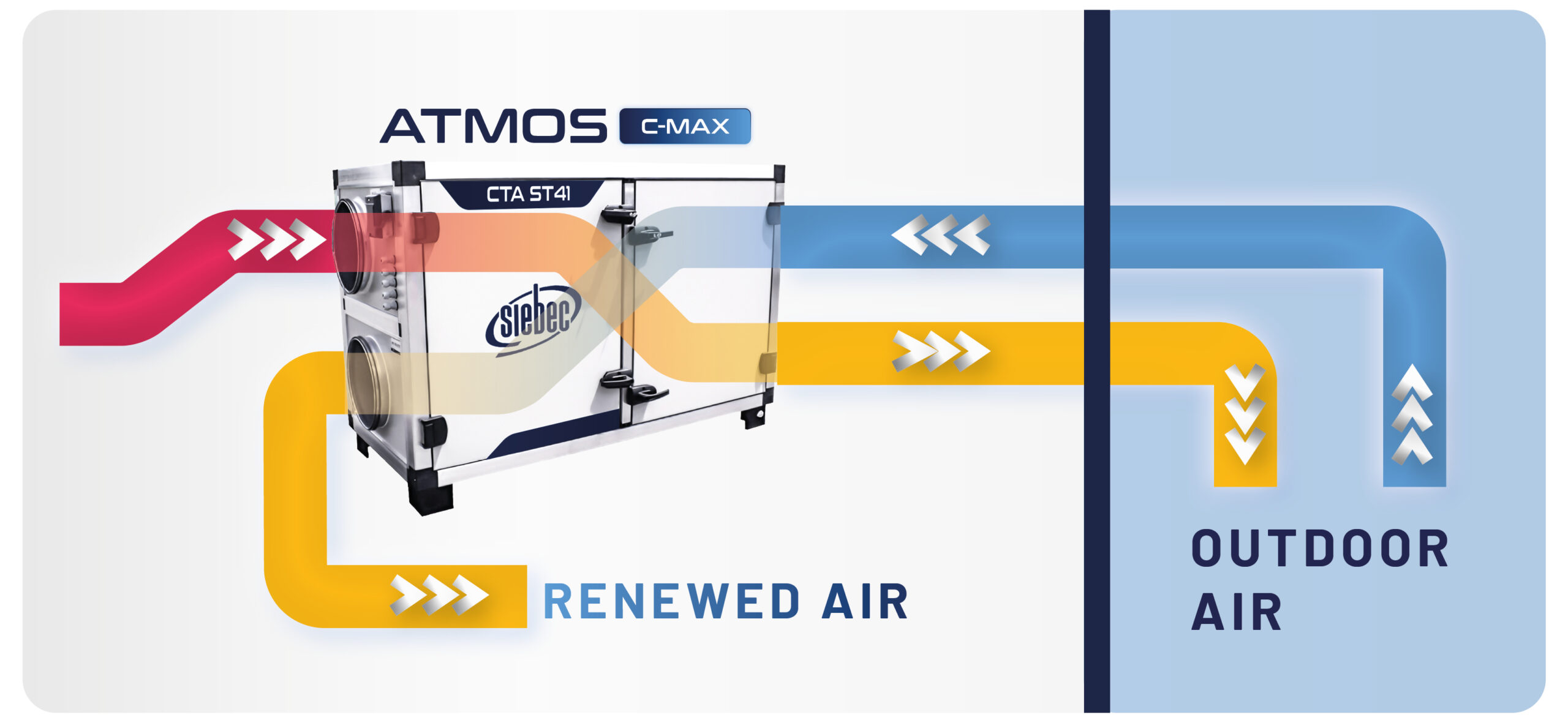

Heat recuperation
Allows heat to be recovered before the air is discharged to the outside, improving the overall energy efficiency of the system.
Caractéristiques
- version
- Centralized installation
- Width (mm)
- 2160
- Length (mm)
- 1330
- Height (mm)
- 1220
- On demand design
- Yes
- Max airflow (m³/h)
- 1000 - 6000
- Suction pipe diameter (mm)
- 1220
- Weight (kg)
- 296
- Type of filtration
- HEPA 13
